About PULIH

Low Back Pain Monitoring Device

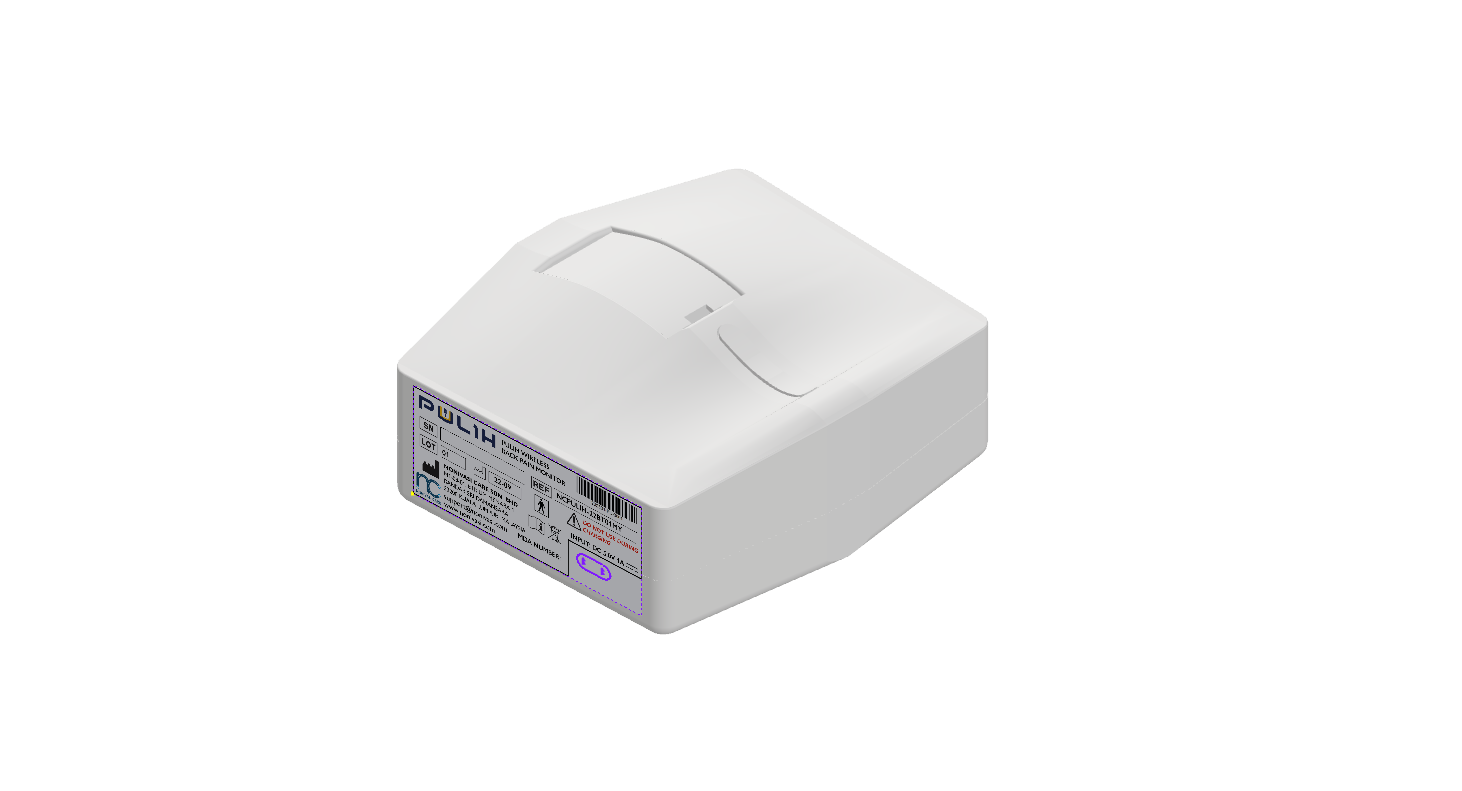

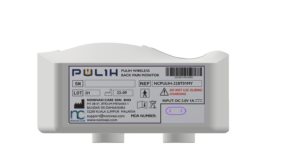

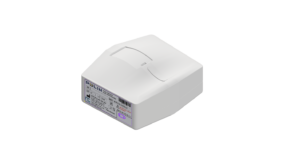

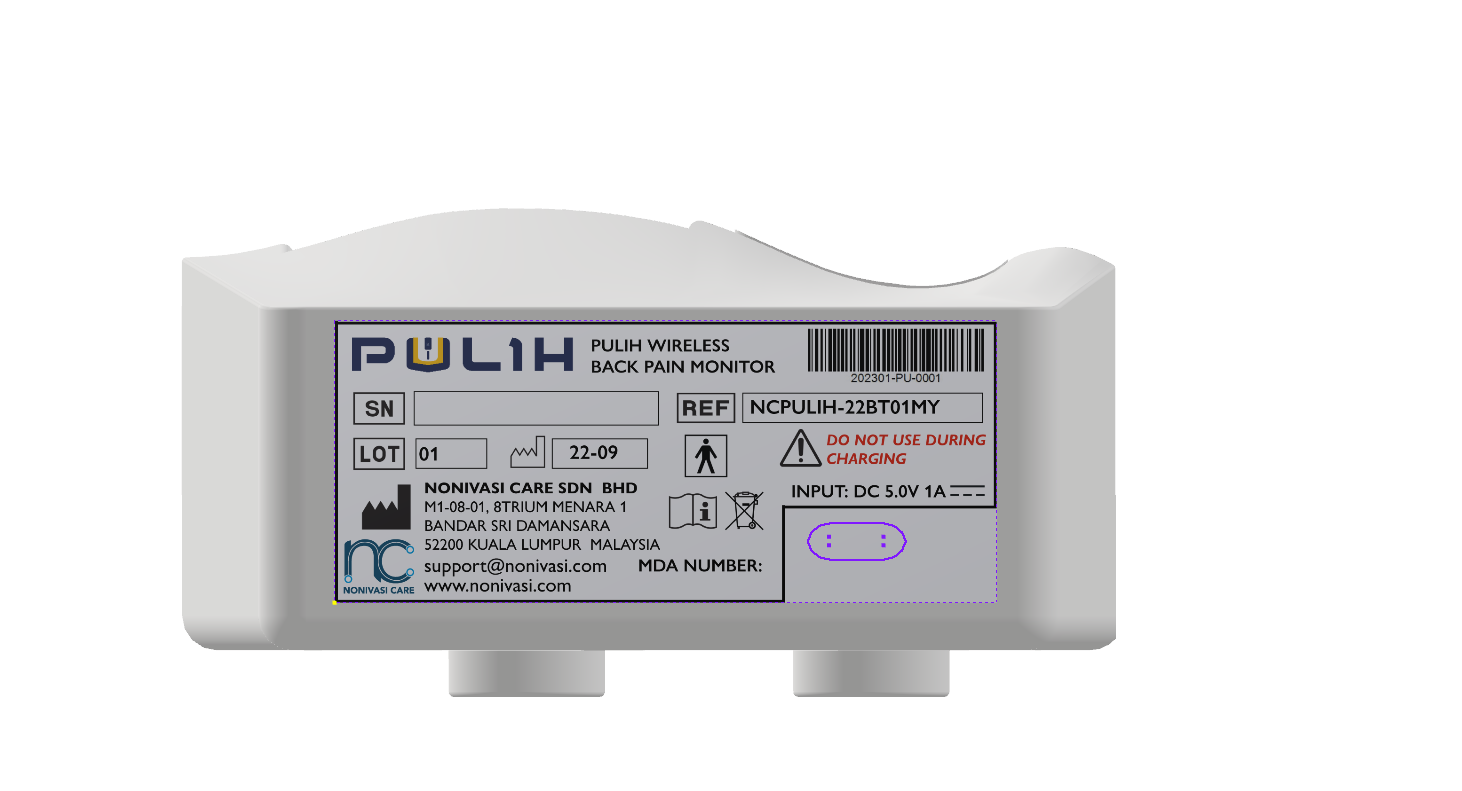

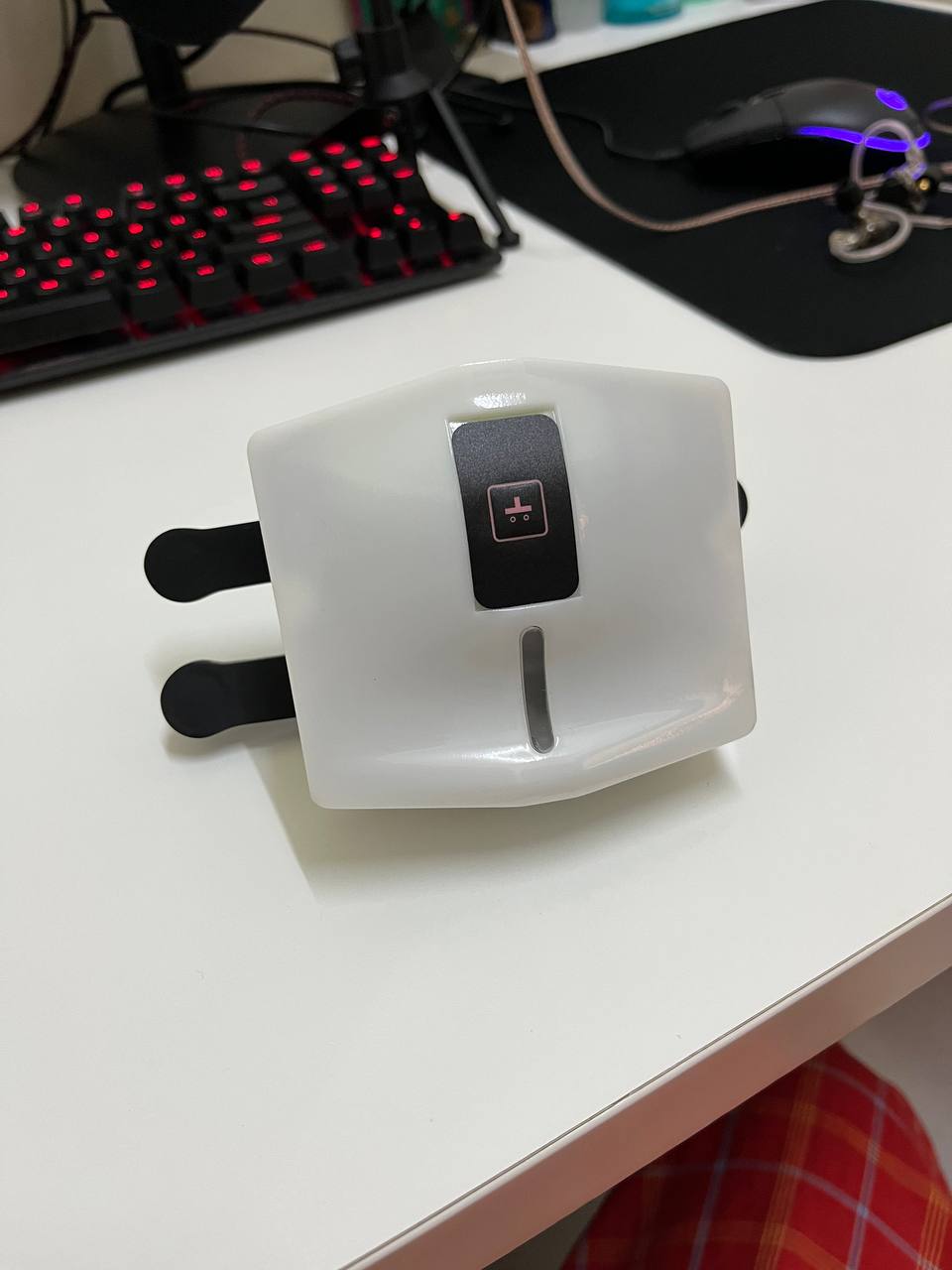

The PULIH Mobile EMG Lower Back Pain Monitor is a battery-powered device (NCPULIH-22BT01MY) intended to automate the diagnosis of Lower Back Pain by utilising specialised algorithms. This makes detection reliable, quantifiable, and straightforward. The device features remote monitoring, allowing data collecting to occur with and without close clinical supervision. Normal personal user can receive free training to identify their electrode placement locations.

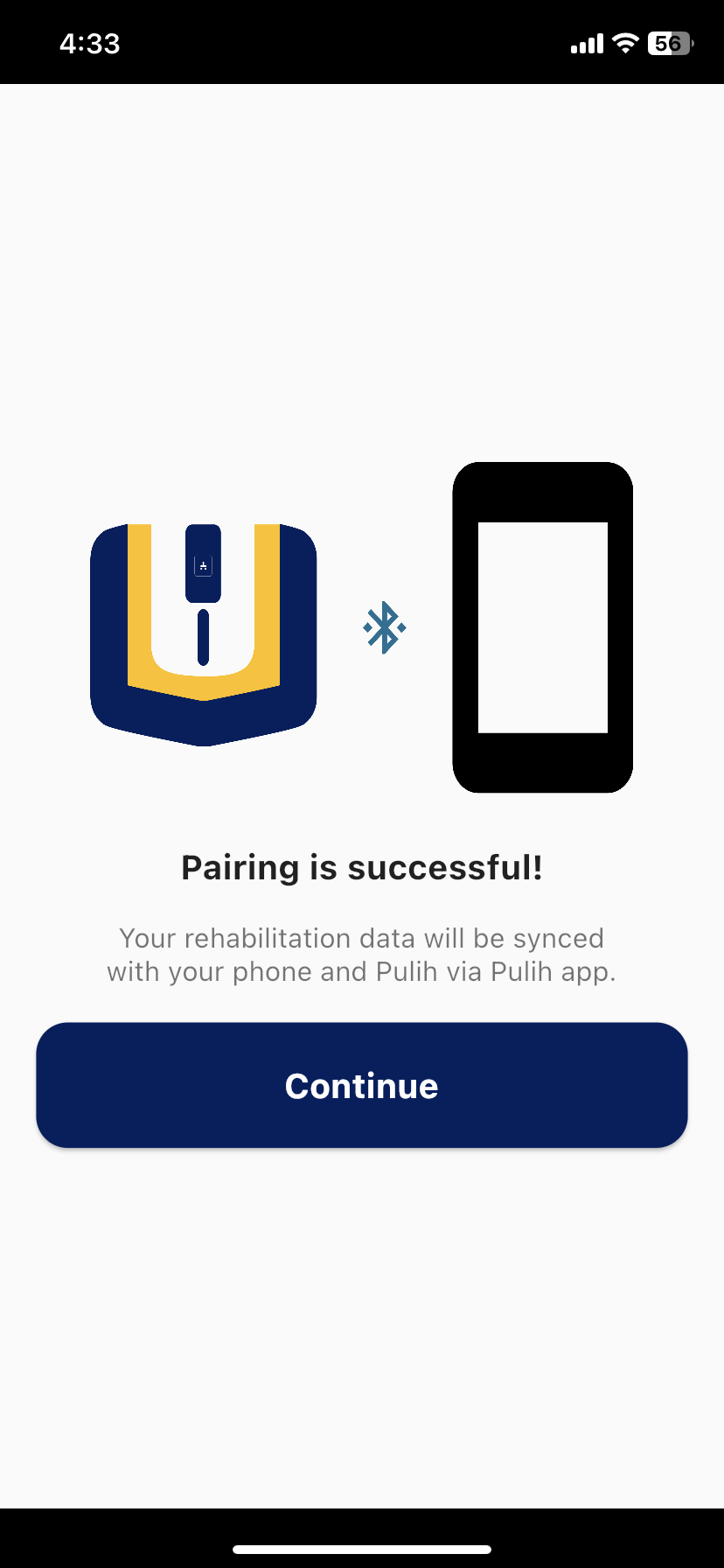

PULIH is equipped with Bluetooth connection that is always available when PULIH is switched on and can be made through PULIH mobile application during setup. The device integrated with sensors that is essential to calculate the Lower Back Pain algorithm. The device contains replaceable and rechargeable lithium-ion battery. The battery status can be monitored via the LED indicator. Battery replacement can only be conducted by certified personnel, as per guarantees regulation. Our Eco-friendly product design policy make it so that the device will automatically shut down after 15 minutes idling.

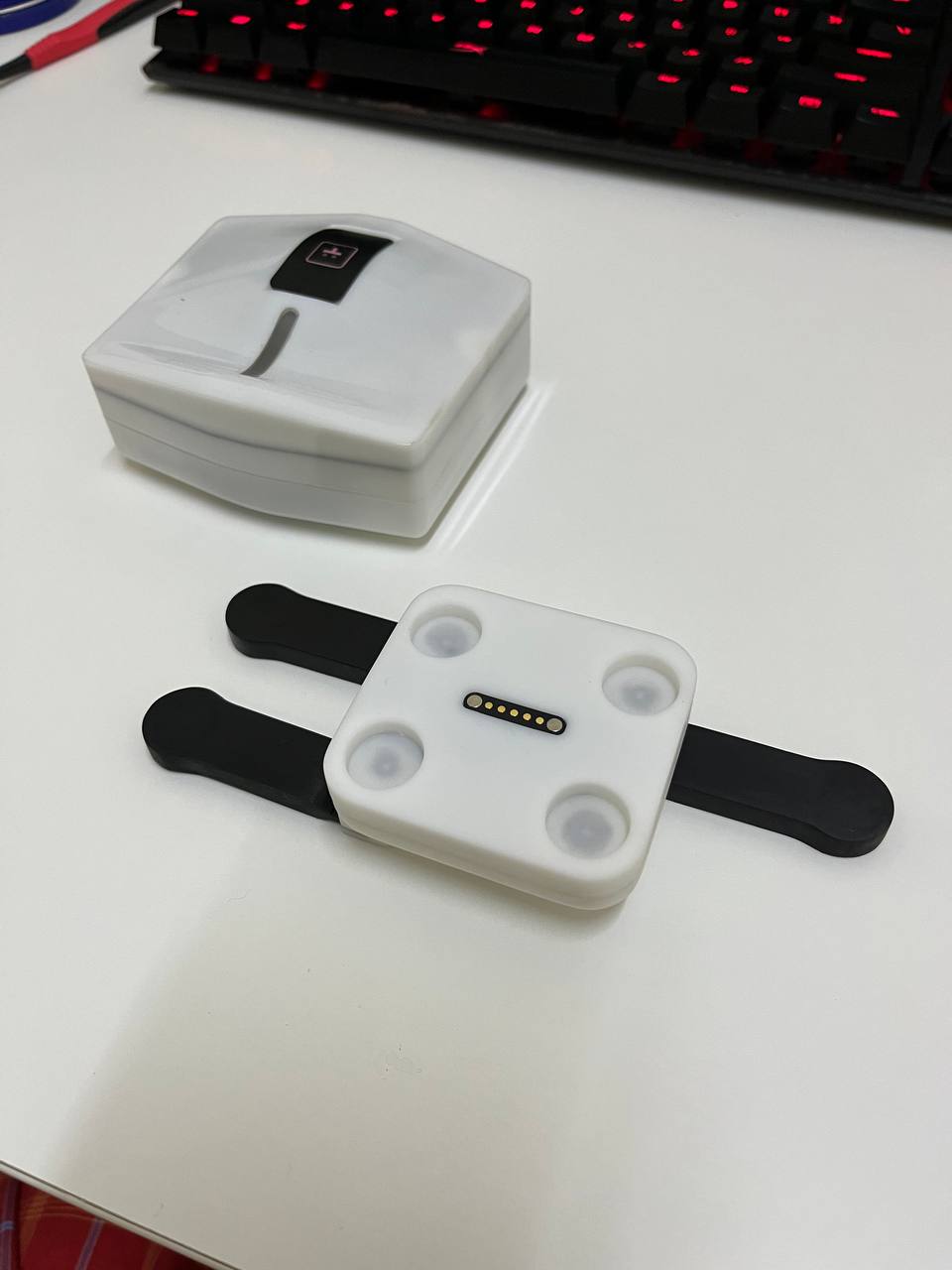

The device main housing function together with the slider housing that connect to the electrode. The slider can be removed and be replaced with another, according to the user’s body type and size. The placement is adjustable assuming the position of the electrode. To replace any part, the slider leg and battery require to be done by authorise personnel or else the warranty of the device will be void.

How It Works

Specifications & Manual

GENERAL SPECIFICATION
DIMENSION (MAIN PULIH DEVICE)(H)90MM X (W)100MM X (L)40MM
WEIGHT120g
ENCLOSURE MATERIALPOLYURETHENE
ELECTRICAL PROPERTIES
CHARGING VOLTAGE5.0v
CHARGING CURRENT1.0A
WORKING VOLTAGE3.3v
BATTERY TECHNOLOGYLITHIUM – ION (18650)
WIRELESS TECHNOLOGYBLUETOOTH 5 LOW ENERGY
ENVIRONMENTAL CONDITION
OPERATING CONDICTION15 ℃ TO 40 ℃
10% – 90% RELATIVE HUMIDITY (NONCONDENSING)
STORAGE CONDITION15 ℃ TO 40 ℃
10% – 90% RELATIVE HUMIDITY (NONCONDENSING)
EMG SPECIFICATION
CHANNELSINGLE DIFFERENTIAL CHANNEL
SAMPLING RATE5,000 Hz
BANDPASS FREQUENCY5 – 1000 Hz
FEATURES
SINGLE BUTTON CONTROLON AND OFF MEMBRAN SWITCH
LED INDICATIONINDICATES BETWEEN CONNECTION AND MEASUREMENT STATE

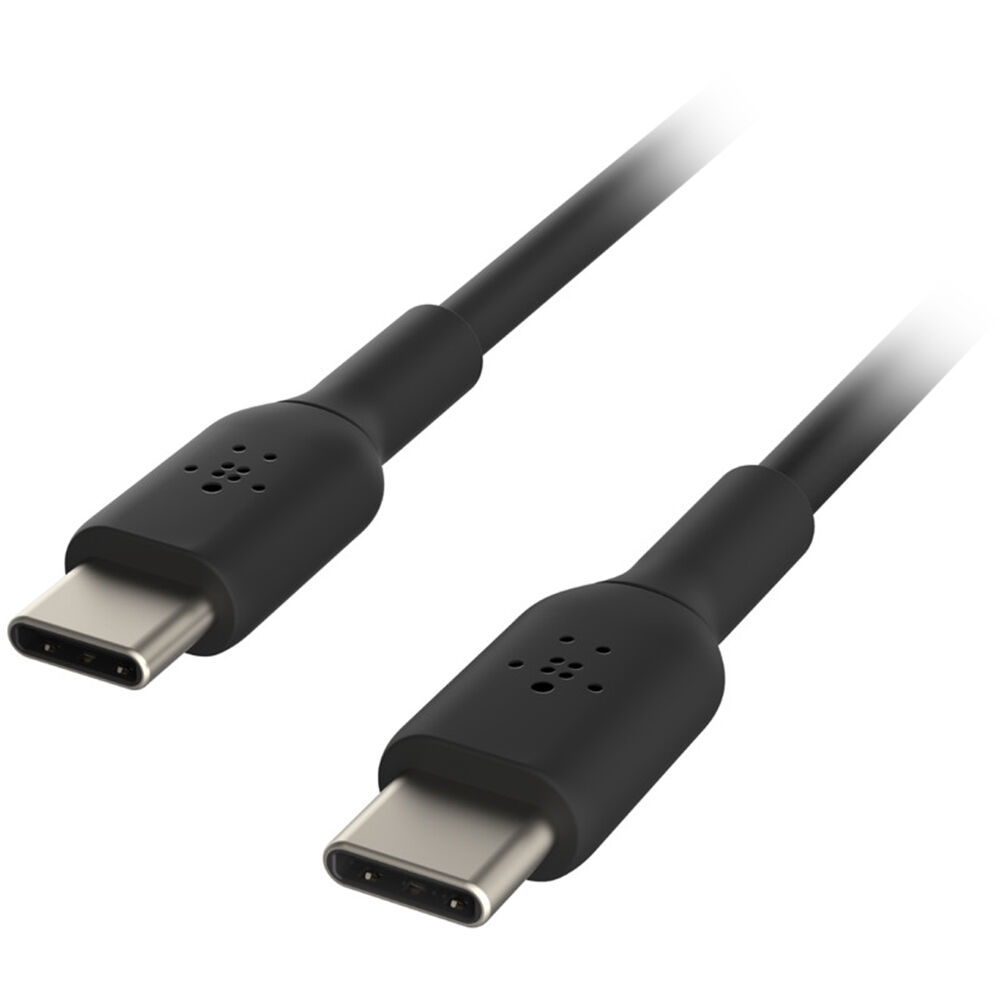

TYPE-C USBCHARGING PORT
MOBILE APPLICATIONUSER OPERATION AND MEASUREMENT

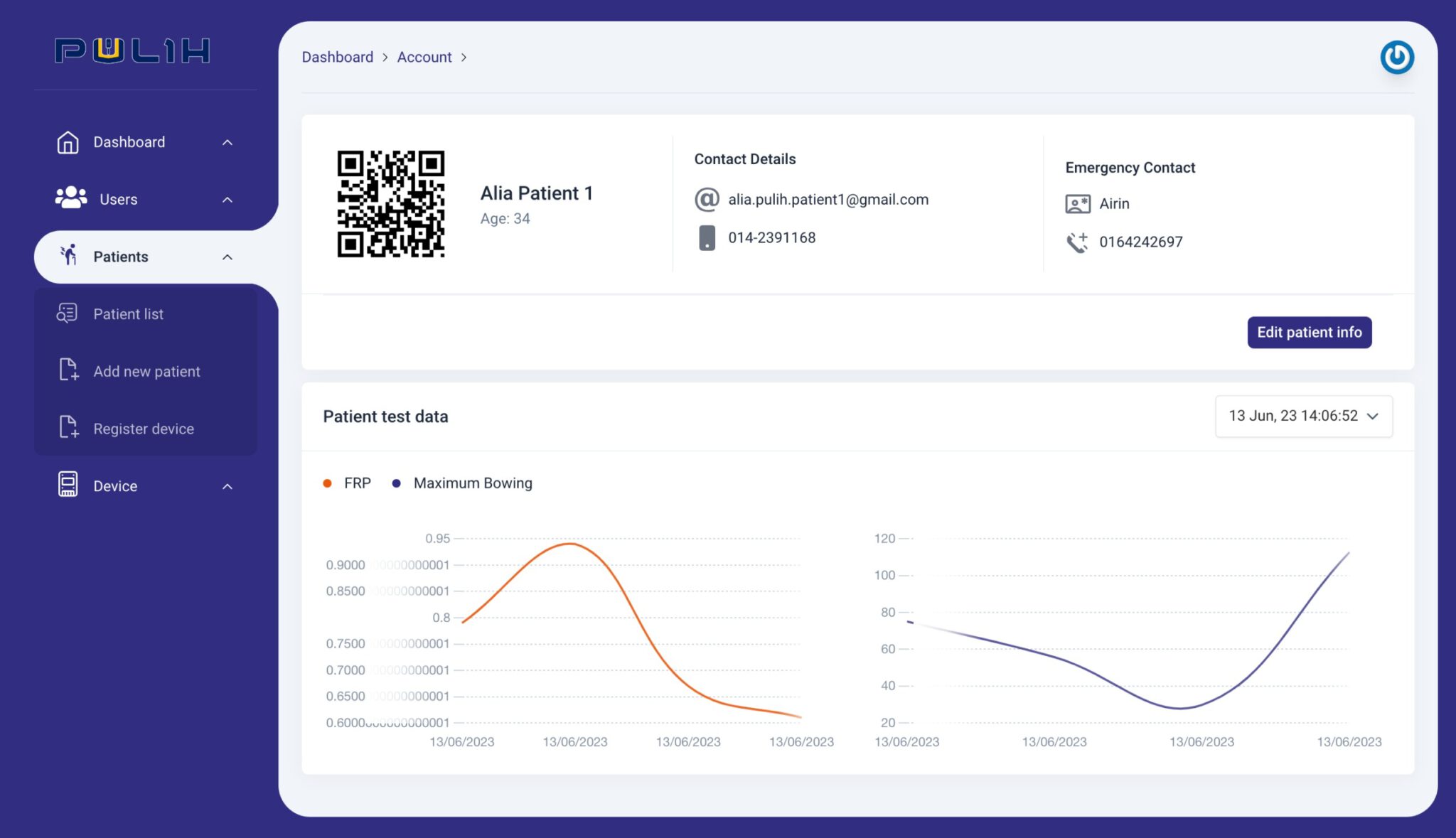

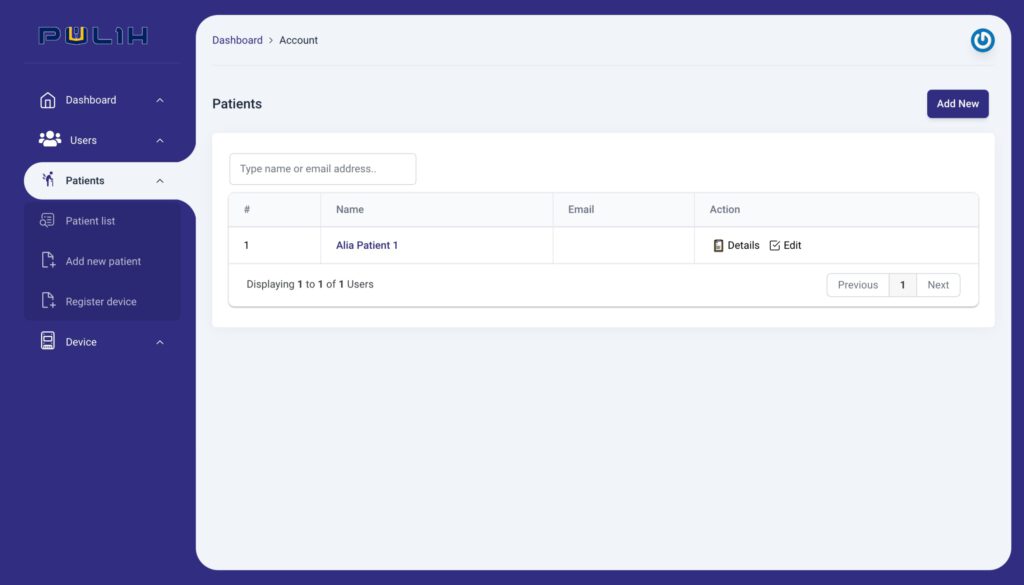

DOCTOR DASHBOARDADMINSTRATION AND REMOTE PATIENT PROGRESS MONITOR

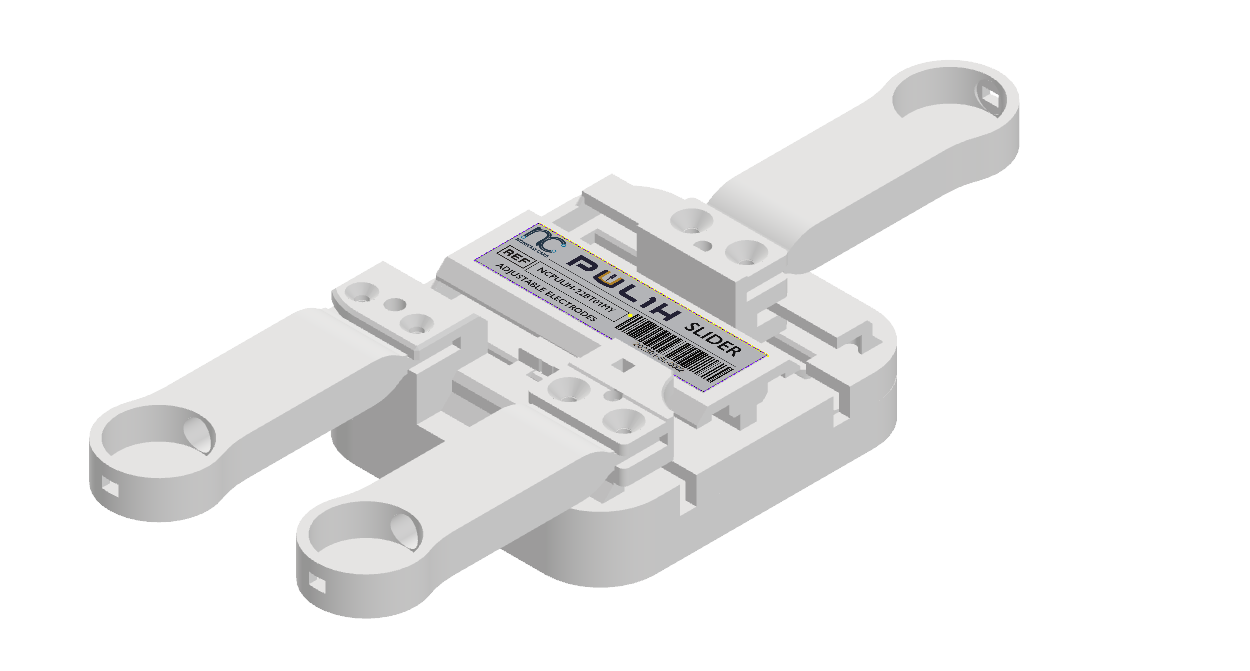

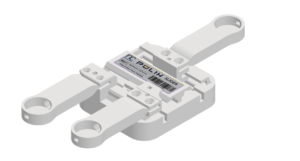

ADJUSTABLE ELECTRODE
SLIDER
ERROR PROOF MAGNETIC CONNECTOR FOR ELECTRODE. ELECTRODE WIDTH AND DISTANCE ADJUSTABLE MECHANISM

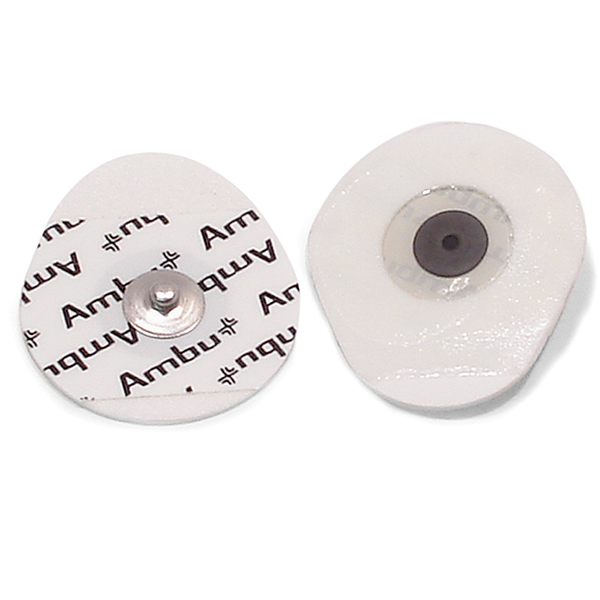

SNAP ADAPTORSINGLE USE BIOPOTENTIAL ELECTRODE SNAP METHOD
SAFETY STANDARDSIEC 60601-1 (IN PROGRESS)
IEC 60601-1 -2 EMC (IN PROGRESS)
EXPECTED SERVICE LIFETIME
BATTERY CHARGING COUNTS~500 CYCLES (NCR18650B)
SLIDER – ELECTRODE LEADS~2000 COUNTS OF SNAP IN & OUT
PULIH MAIN HARDWARE4 YEARS

Download Now:

Apple App Store

Google Play Store

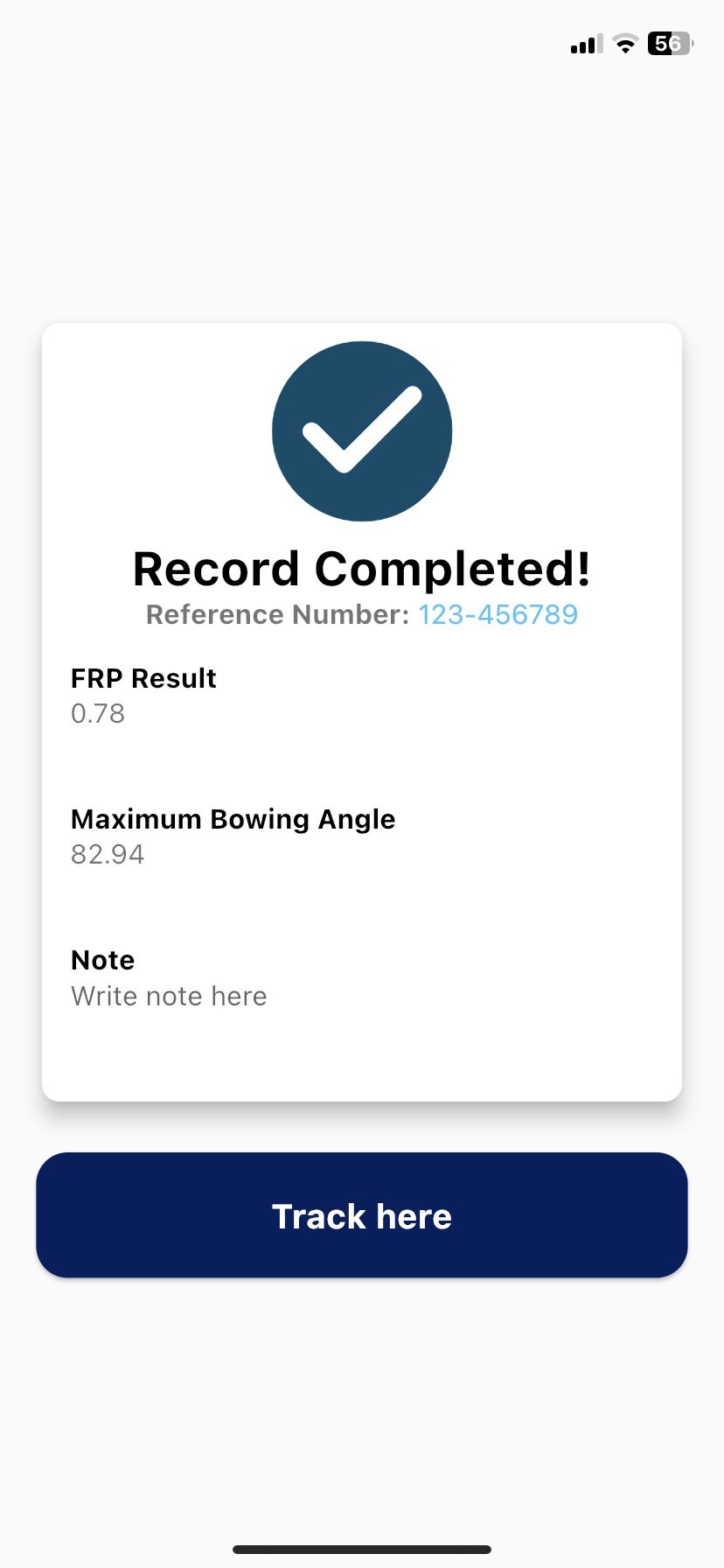

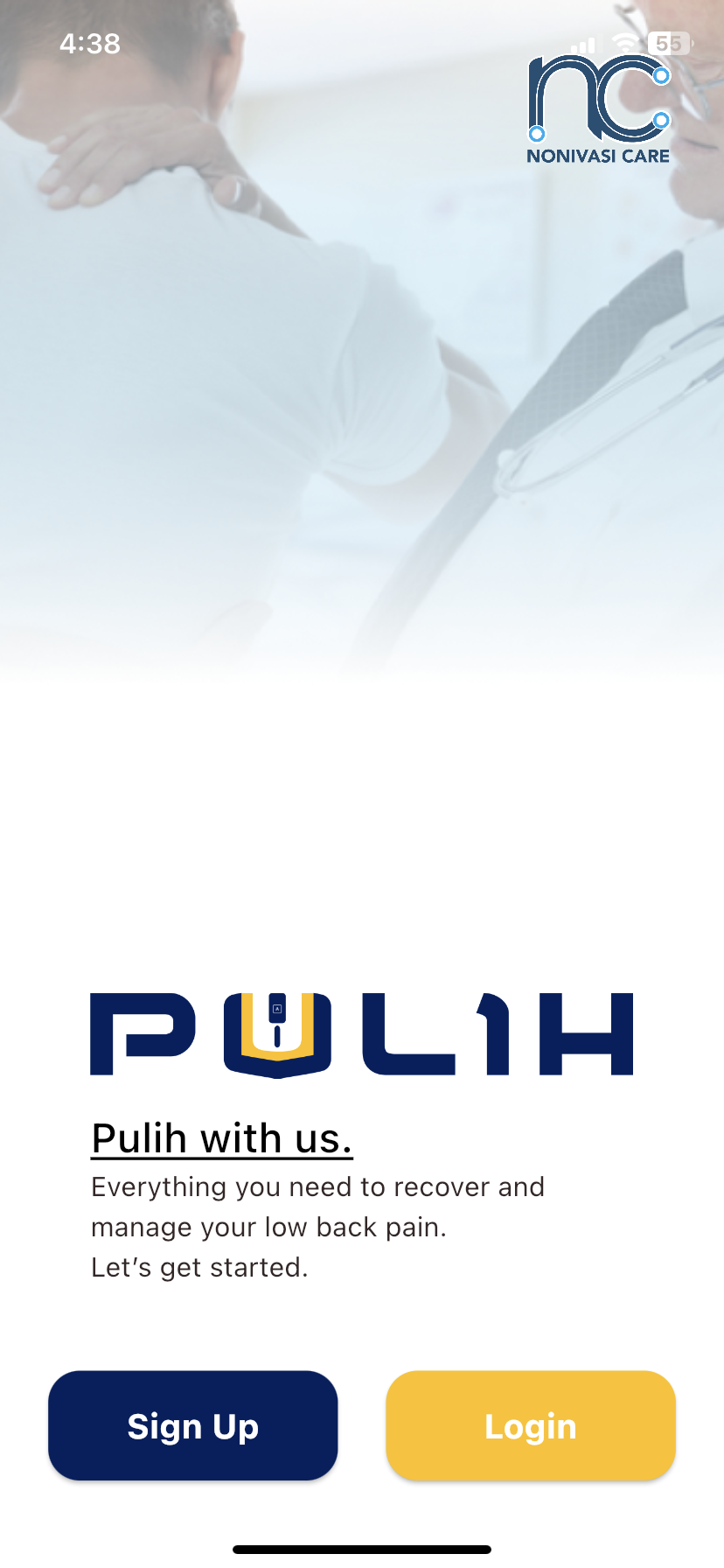

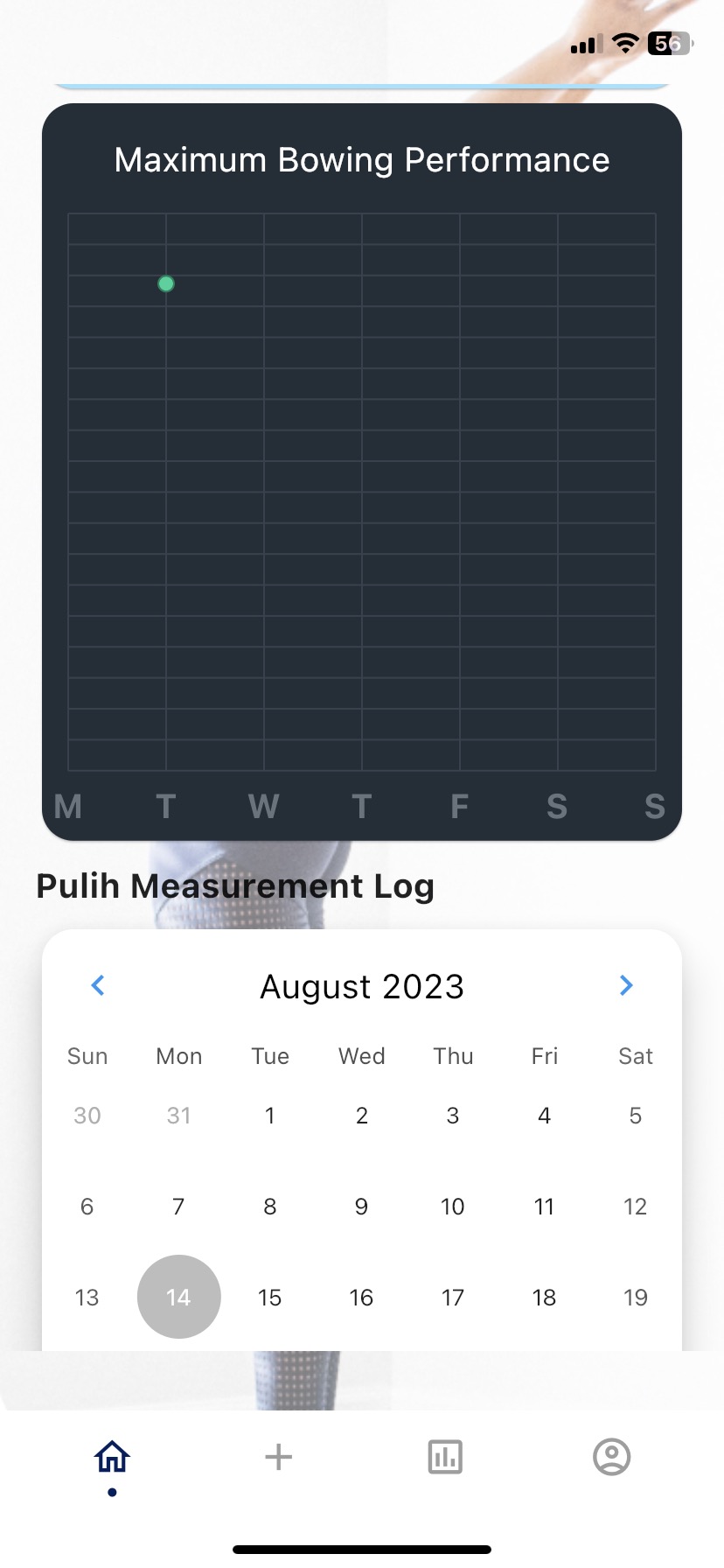

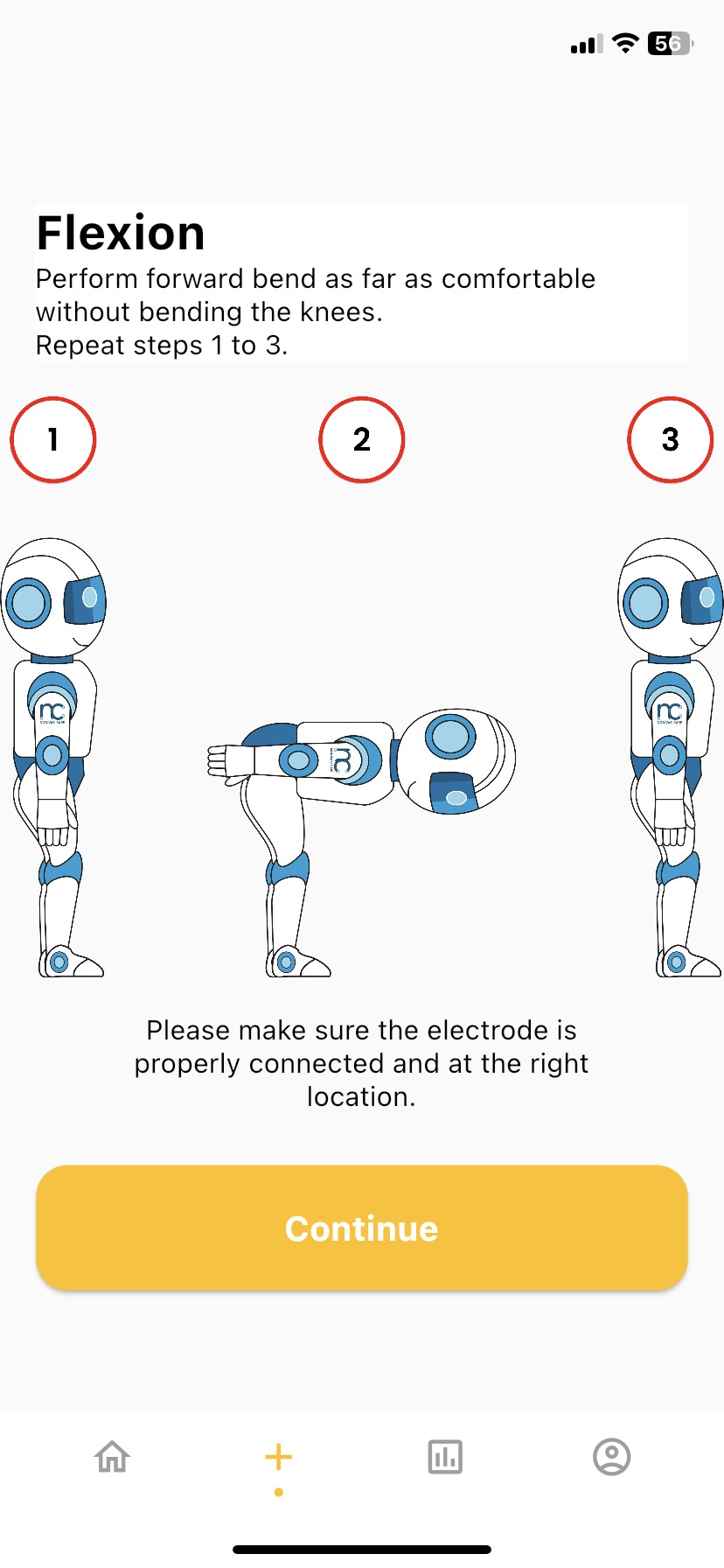

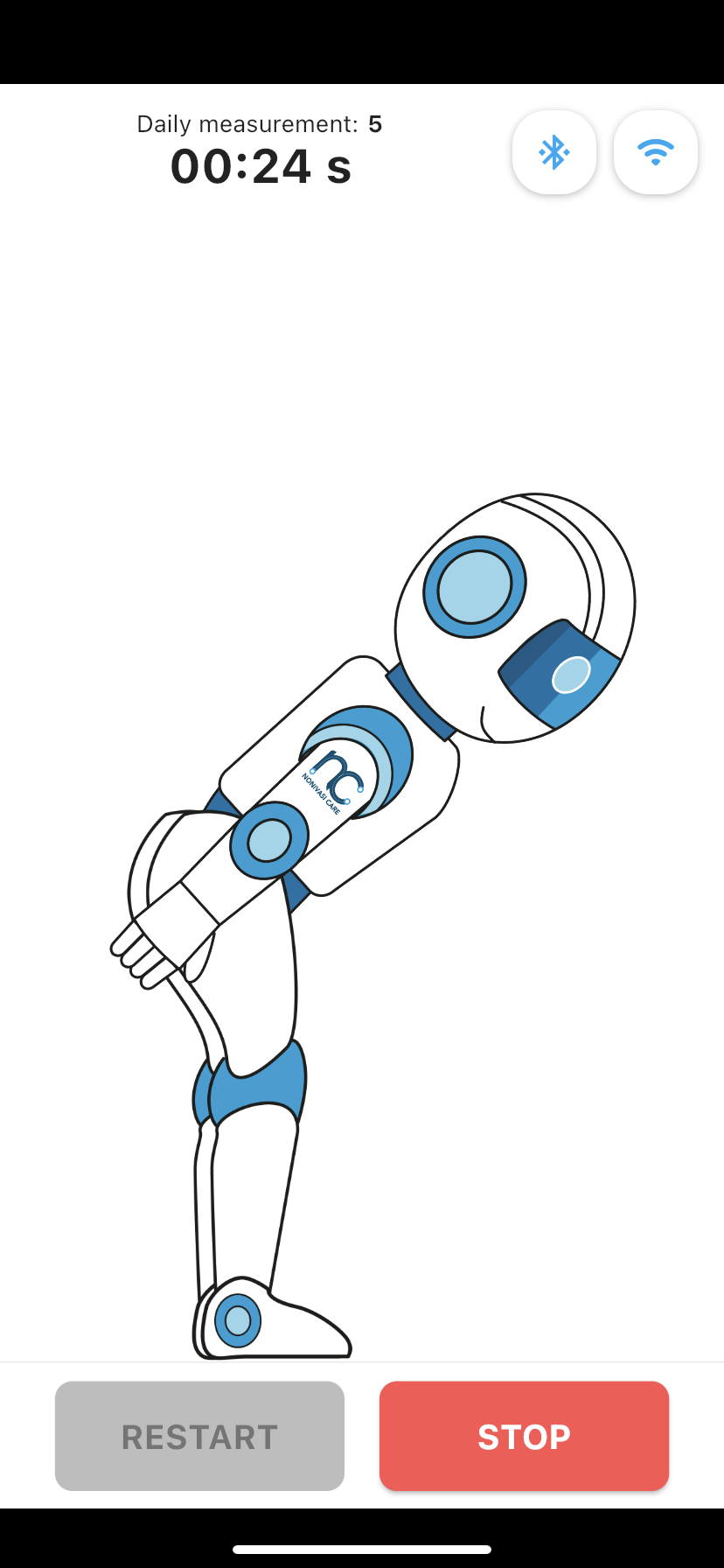

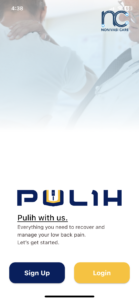

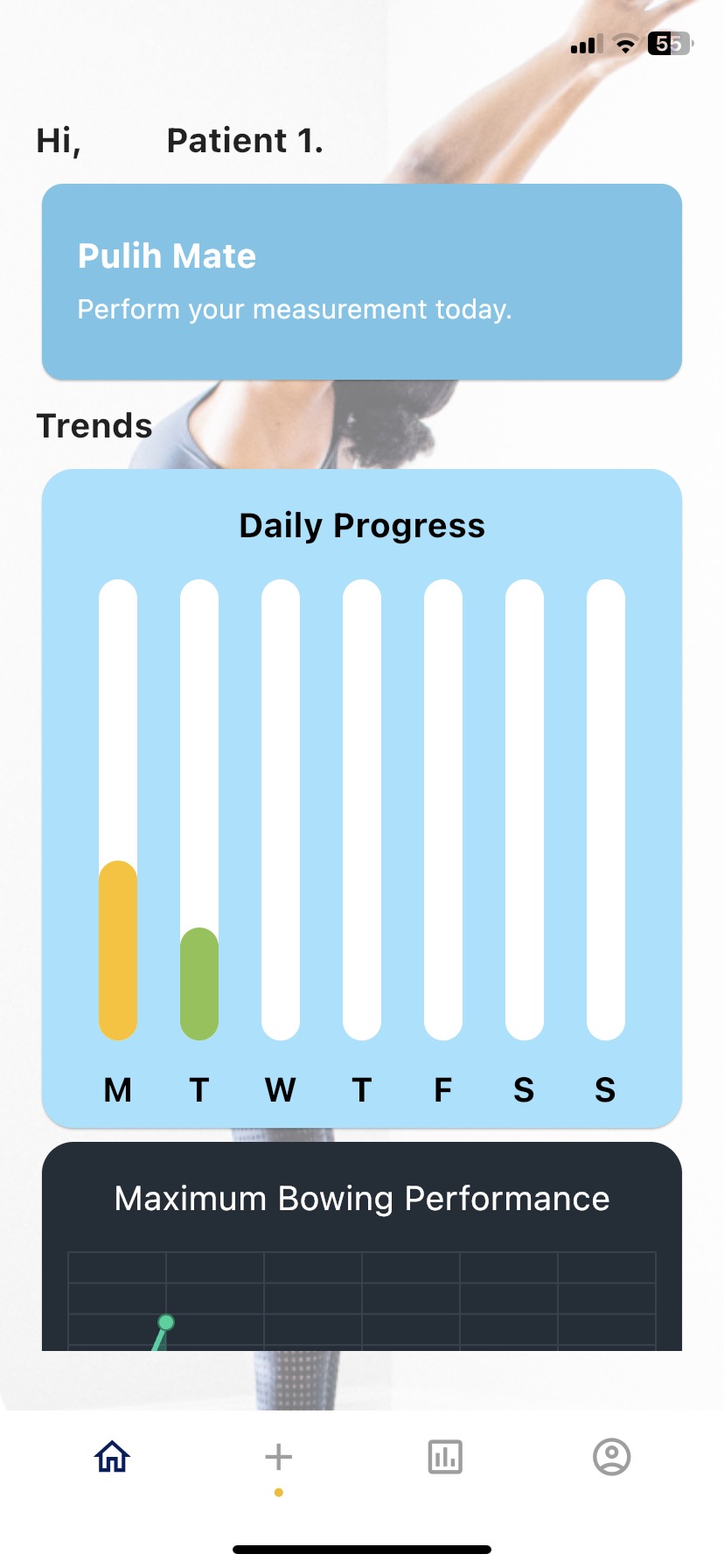

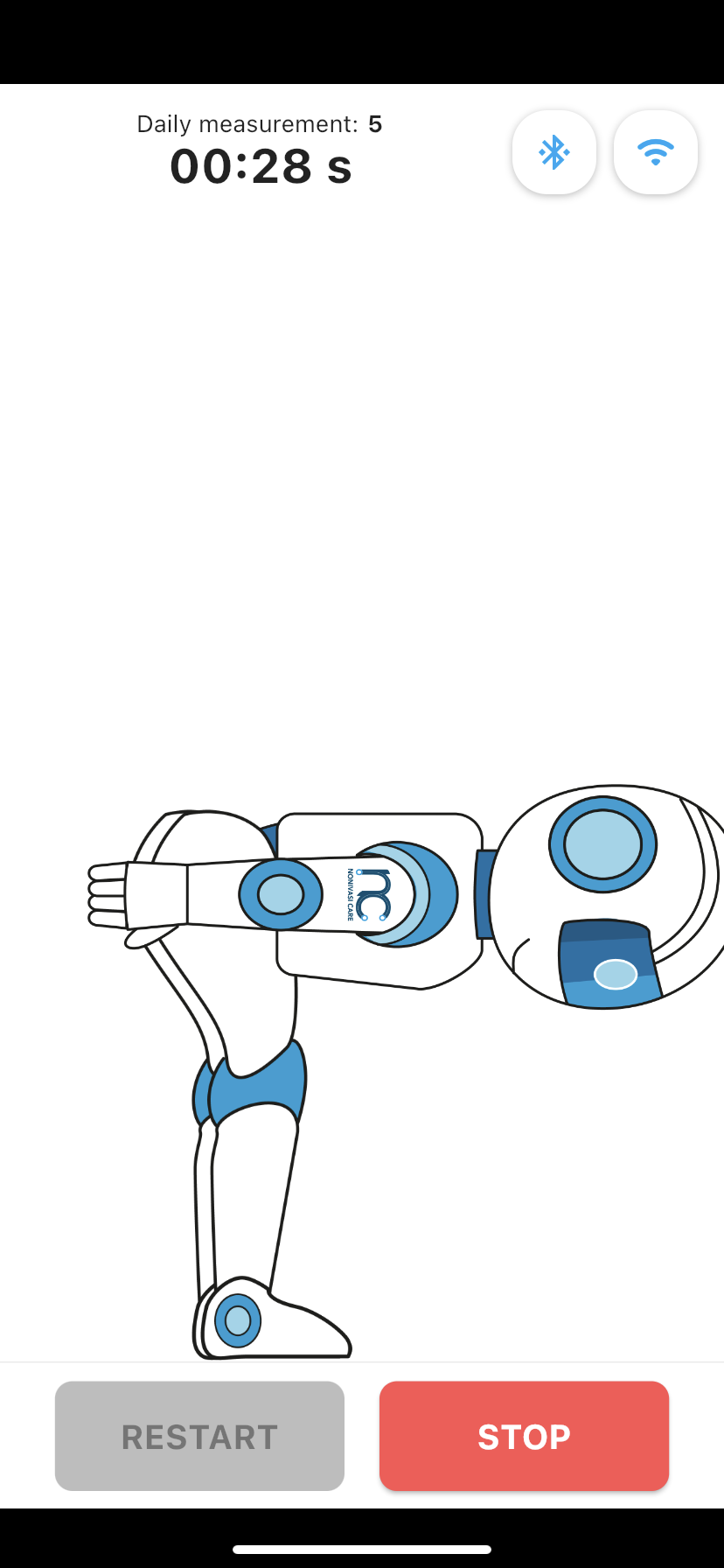

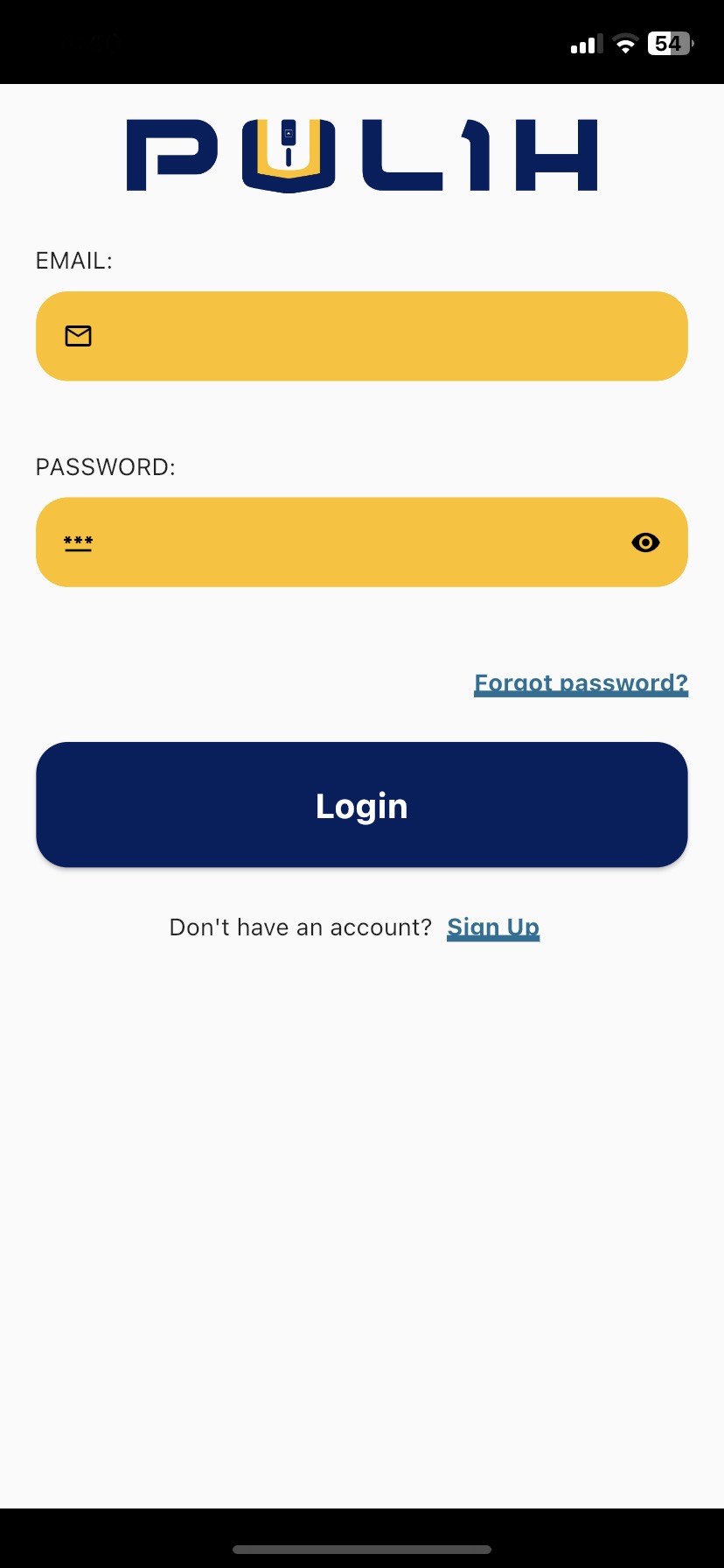

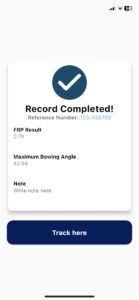

Mobile Apps Preview

Painless

Non-invasive approach to measure lower back pain

Easy

Easy to use with device and mobile applications

Near

Recovery process at the fingertips of your physician
